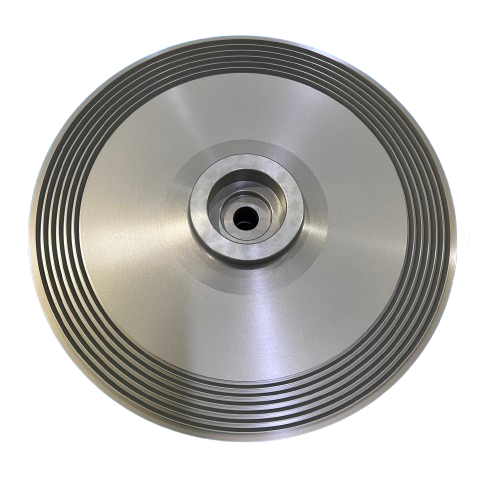

Services used: CNC Machining

Material used: Aluminium AL6061-T6

CNC Programming: 12 working days

Cutting Time: 15 working days (360 hrs)

Out team produced this part on a 5-Axis High Speed CNC Machine, DMU 850. Processing was the following – Six face rotating high speed cutting

Minimum cutting tools Radian – R 1.5
Surface Finishing – RA 3.2
Tolerance – International tolerance allowed error grade 2

Quality Control – CMM (7 working days)
TRANSMISSION GEARBOX CASE STUDIES
